[Partial] [Constrained] Correspondence Analysis and Redundancy Analysis

Function cca performs correspondence analysis, or optionally constrained correspondence analysis (a.k.a. canonical correspondence analysis), or optionally partial constrained correspondence analysis. Function rda performs redundancy analysis, or optionally principal components analysis. These are all very popular ordination techniques in community ecology.

Usage

# S3 method for class 'formula'
cca(formula, data, na.action = na.fail, subset = NULL,
  ...)
# S3 method for class 'formula'
rda(formula, data, scale=FALSE, na.action = na.fail,
  subset = NULL, ...)
# Default S3 method
cca(X, Y, Z, ...)
# Default S3 method
rda(X, Y, Z, scale=FALSE, ...)
ca(X, ...)
pca(X, scale=FALSE, ...)

Arguments

formula

Model formula, where the left hand side gives the community data matrix, right hand side gives the constraining variables, and conditioning variables can be given within a special function Condition.

data

Data frame containing the variables on the right hand side of the model formula.

X

Community data matrix.

Y

Constraining matrix, typically of environmental variables. Can be missing. If this is a data.frame, it will be expanded to a model.matrix where factors are expanded to contrasts (“dummy variables”). It is better to use formula instead of this argument, and some further analyses only work when formula was used.

Z

Conditioning matrix, the effect of which is removed (“partialled out”) before next step. Can be missing. If this is a data.frame, it is expanded similarly as constraining matrix.

scale

Scale species to unit variance (like correlations).

na.action

Handling of missing values in constraints or conditions. The default (na.fail) is to stop with missing value. Choice na.omit removes all rows with missing values. Choice na.exclude keeps all observations but gives NA for results that cannot be calculated. The WA scores of rows may be found also for missing values in constraints. Missing values are never allowed in dependent community data.

subset

Subset of data rows. This can be a logical vector which is TRUE for kept observations, or a logical expression which can contain variables in the working environment, data or species names of the community data.

...

Other arguments for print or plot functions (ignored in other functions). For pca() and ca(), arguments are passed to rda() and cca(), respectively.

Details

Since their introduction (ter Braak 1986), constrained, or canonical, correspondence analysis and its spin-off, redundancy analysis, have been the most popular ordination methods in community ecology. Functions cca and rda are similar to popular proprietary software Canoco, although the implementation is completely different. The functions are based on Legendre & Legendre's (2012) algorithm: in cca Chi-square transformed data matrix is subjected to weighted linear regression on constraining variables, and the fitted values are submitted to correspondence analysis performed via singular value decomposition (svd). Function rda is similar, but uses ordinary, unweighted linear regression and unweighted SVD. Legendre & Legendre (2012), Table 11.5 (p. 650) give a skeleton of the RDA algorithm of vegan. The algorithm of CCA is similar, but involves standardization by row and column weights.

The functions cca() and rda() can be called either with matrix-like entries for community data and constraints, or with formula interface. In general, the formula interface is preferred, because it allows a better control of the model and allows factor constraints. Some analyses of ordination results are only possible if model was fitted with formula (e.g., most cases of anova.cca, automatic model building).

In the following sections, X, Y and Z, although referred to as matrices, are more commonly data frames.

In the matrix interface, the community data matrix X must be given, but the other data matrices may be omitted, and the corresponding stage of analysis is skipped. If matrix Z is supplied, its effects are removed from the community matrix, and the residual matrix is submitted to the next stage. This is called partial correspondence or redundancy analysis. If matrix Y is supplied, it is used to constrain the ordination, resulting in constrained or canonical correspondence analysis, or redundancy analysis. Finally, the residual is submitted to ordinary correspondence analysis (or principal components analysis). If both matrices Z and Y are missing, the data matrix is analysed by ordinary correspondence analysis (or principal components analysis).

Instead of separate matrices, the model can be defined using a model formula. The left hand side must be the community data matrix (X). The right hand side defines the constraining model. The constraints can contain ordered or unordered factors, interactions among variables and functions of variables. The defined contrasts are honoured in factor variables. The constraints can also be matrices (but not data frames). The formula can include a special term Condition for conditioning variables (“covariables”) partialled out before analysis. So the following commands are equivalent: cca(X, Y, Z), cca(X ~ Y + Condition(Z)), where Y and Z refer to constraints and conditions matrices respectively.

Constrained correspondence analysis is indeed a constrained method: CCA does not try to display all variation in the data, but only the part that can be explained by the used constraints. Consequently, the results are strongly dependent on the set of constraints and their transformations or interactions among the constraints. The shotgun method is to use all environmental variables as constraints. However, such exploratory problems are better analysed with unconstrained methods such as correspondence analysis (decorana, corresp) or non-metric multidimensional scaling (metaMDS) and environmental interpretation after analysis (envfit, ordisurf). CCA is a good choice if the user has clear and strong a priori hypotheses on constraints and is not interested in the major structure in the data set.

CCA is able to correct the curve artefact commonly found in correspondence analysis by forcing the configuration into linear constraints. However, the curve artefact can be avoided only with a low number of constraints that do not have a curvilinear relation with each other. The curve can reappear even with two badly chosen constraints or a single factor. Although the formula interface makes it easy to include polynomial or interaction terms, such terms often produce curved artefacts (that are difficult to interpret), these should probably be avoided.

According to folklore, rda should be used with “short gradients” rather than cca. However, this is not based on research which finds methods based on Euclidean metric as uniformly weaker than those based on Chi-squared metric. However, standardized Euclidean distance may be an appropriate measures (see Hellinger standardization in decostand in particular).

Partial CCA (pCCA; or alternatively partial RDA) can be used to remove the effect of some conditioning or background or random variables or covariables before CCA proper. In fact, pCCA compares models cca(X ~ Z) and cca(X ~ Y + Z) and attributes their difference to the effect of Y cleansed of the effect of Z. Some people have used the method for extracting “components of variance” in CCA. However, if the effect of variables together is stronger than sum of both separately, this can increase total Chi-square after partialling out some variation, and give negative “components of variance”. In general, such components of “variance” are not to be trusted due to interactions between two sets of variables.

The unconstrained ordination methods, Principal Components Analysis (PCA) and Correspondence Analysis (CA), may be performed using pca() and ca(), which are simple wrappers around rda() and cca(), respectively. Functions pca() and ca() can only be called with matrix-like objects.

The functions have summary and plot methods which are documented separately (see plot.cca, summary.cca).

Value

Function cca returns a huge object of class cca, which is described separately in cca.object.

Function rda returns an object of class rda which inherits from class cca and is described in cca.object. The scaling used in rda scores is described in a separate vignette with this package.

Functions pca() and ca() return objects of class "vegan_pca" and "vegan_ca" respectively to avoid clashes with other packages. These classes inherit from "rda" and "cca" respectively.

References

The original method was by ter Braak, but the current implementation follows Legendre and Legendre.

Legendre, P. and Legendre, L. (2012) Numerical Ecology. 3rd English ed. Elsevier.

McCune, B. (1997) Influence of noisy environmental data on canonical correspondence analysis. Ecology 78, 2617-2623.

Palmer, M. W. (1993) Putting things in even better order: The advantages of canonical correspondence analysis. Ecology 74,2215-2230.

Ter Braak, C. J. F. (1986) Canonical Correspondence Analysis: a new eigenvector technique for multivariate direct gradient analysis. Ecology 67, 1167-1179.

Author

The responsible author was Jari Oksanen, but the code borrows heavily from Dave Roberts (Montana State University, USA).

See also

This help page describes two constrained ordination functions, cca and rda and their corresponding unconstrained ordination functions, ca and pca. A related method, distance-based redundancy analysis (dbRDA) is described separately (capscale), as is dbRDA's unconstrained variant, principal coordinates analysis (PCO). All these functions return similar objects (described in cca.object). There are numerous support functions that can be used to access the result object. In the list below, functions of type cca will handle all three constrained ordination objects, and functions of rda only handle rda and capscale results.

The main plotting functions are plot.cca for all methods, and biplot.rda for RDA and dbRDA. However, generic vegan plotting functions can also handle the results. The scores can be accessed and scaled with scores.cca, and summarized with summary.cca. The eigenvalues can be accessed with eigenvals.cca and the regression coefficients for constraints with coef.cca. The eigenvalues can be plotted with screeplot.cca, and the (adjusted) \(R^2\) can be found with RsquareAdj.rda. The scores can be also calculated for new data sets with predict.cca which allows adding points to ordinations. The values of constraints can be inferred from ordination and community composition with calibrate.cca.

Diagnostic statistics can be found with goodness.cca, inertcomp, spenvcor, intersetcor, tolerance.cca, and vif.cca. Function as.mlm.cca refits the result object as a multiple lm object, and this allows finding influence statistics (lm.influence, cooks.distance etc.).

Permutation based significance for the overall model, single constraining variables or axes can be found with anova.cca. Automatic model building with R step function is possible with deviance.cca, add1.cca and drop1.cca. Functions ordistep and ordiR2step (for RDA) are special functions for constrained ordination. Randomized data sets can be generated with simulate.cca.

Separate methods based on constrained ordination model are principal response curves (prc) and variance partitioning between several components (varpart).

Design decisions are explained in vignette on “Design decisions” which can be accessed with browseVignettes("vegan").

Examples

data(varespec)
data(varechem)
## Common but bad way: use all variables you happen to have in your
## environmental data matrix
vare.cca <- cca(varespec, varechem)
vare.cca
#> Call: cca(X = varespec, Y = varechem)
#>
#> -- Model Summary --
#>
#>               Inertia Proportion Rank
#> Total          2.0832     1.0000
#> Constrained    1.4415     0.6920   14
#> Unconstrained  0.6417     0.3080    9
#>
#> Inertia is scaled Chi-square
#>
#> -- Eigenvalues --
#>
#> Eigenvalues for constrained axes:
#>   CCA1   CCA2   CCA3   CCA4   CCA5   CCA6   CCA7   CCA8   CCA9  CCA10  CCA11
#> 0.4389 0.2918 0.1628 0.1421 0.1180 0.0890 0.0703 0.0584 0.0311 0.0133 0.0084
#>  CCA12  CCA13  CCA14
#> 0.0065 0.0062 0.0047
#>
#> Eigenvalues for unconstrained axes:
#>     CA1     CA2     CA3     CA4     CA5     CA6     CA7     CA8     CA9
#> 0.19776 0.14193 0.10117 0.07079 0.05330 0.03330 0.01887 0.01510 0.00949
#>
plot(vare.cca)

## Formula interface and a better model
vare.cca <- cca(varespec ~ Al + P*(K + Baresoil), data=varechem)
vare.cca
#> Call: cca(formula = varespec ~ Al + P * (K + Baresoil), data = varechem)
#>
#> -- Model Summary --
#>
#>               Inertia Proportion Rank
#> Total           2.083      1.000
#> Constrained     1.046      0.502    6
#> Unconstrained   1.038      0.498   17
#>
#> Inertia is scaled Chi-square
#>
#> -- Eigenvalues --
#>
#> Eigenvalues for constrained axes:
#>   CCA1   CCA2   CCA3   CCA4   CCA5   CCA6
#> 0.3756 0.2342 0.1407 0.1323 0.1068 0.0561
#>
#> Eigenvalues for unconstrained axes:
#>     CA1     CA2     CA3     CA4     CA5     CA6     CA7     CA8
#> 0.27577 0.15411 0.13536 0.11803 0.08887 0.05511 0.04919 0.03781
#> (Showing 8 of 17 unconstrained eigenvalues)
#>
plot(vare.cca)

## Partialling out and negative components of variance
cca(varespec ~ Ca, varechem)
#> Call: cca(formula = varespec ~ Ca, data = varechem)
#>
#> -- Model Summary --
#>
#>               Inertia Proportion Rank
#> Total         2.08320    1.00000
#> Constrained   0.15722    0.07547    1
#> Unconstrained 1.92598    0.92453   22
#>
#> Inertia is scaled Chi-square
#>
#> -- Eigenvalues --
#>
#> Eigenvalues for constrained axes:
#>    CCA1
#> 0.15722
#>
#> Eigenvalues for unconstrained axes:
#>    CA1    CA2    CA3    CA4    CA5    CA6    CA7    CA8
#> 0.4745 0.2939 0.2140 0.1954 0.1748 0.1171 0.1121 0.0880
#> (Showing 8 of 22 unconstrained eigenvalues)
#>
cca(varespec ~ Ca + Condition(pH), varechem)
#> Call: cca(formula = varespec ~ Ca + Condition(pH), data = varechem)
#>
#> -- Model Summary --
#>
#>               Inertia Proportion Rank
#> Total          2.0832     1.0000
#> Conditional    0.1458     0.0700    1
#> Constrained    0.1827     0.0877    1
#> Unconstrained  1.7547     0.8423   21
#>
#> Inertia is scaled Chi-square
#>
#> -- Eigenvalues --
#>
#> Eigenvalues for constrained axes:
#>    CCA1
#> 0.18269
#>
#> Eigenvalues for unconstrained axes:
#>    CA1    CA2    CA3    CA4    CA5    CA6    CA7    CA8
#> 0.3834 0.2749 0.2123 0.1760 0.1701 0.1161 0.1089 0.0880
#> (Showing 8 of 21 unconstrained eigenvalues)
#>
## RDA
data(dune)
data(dune.env)

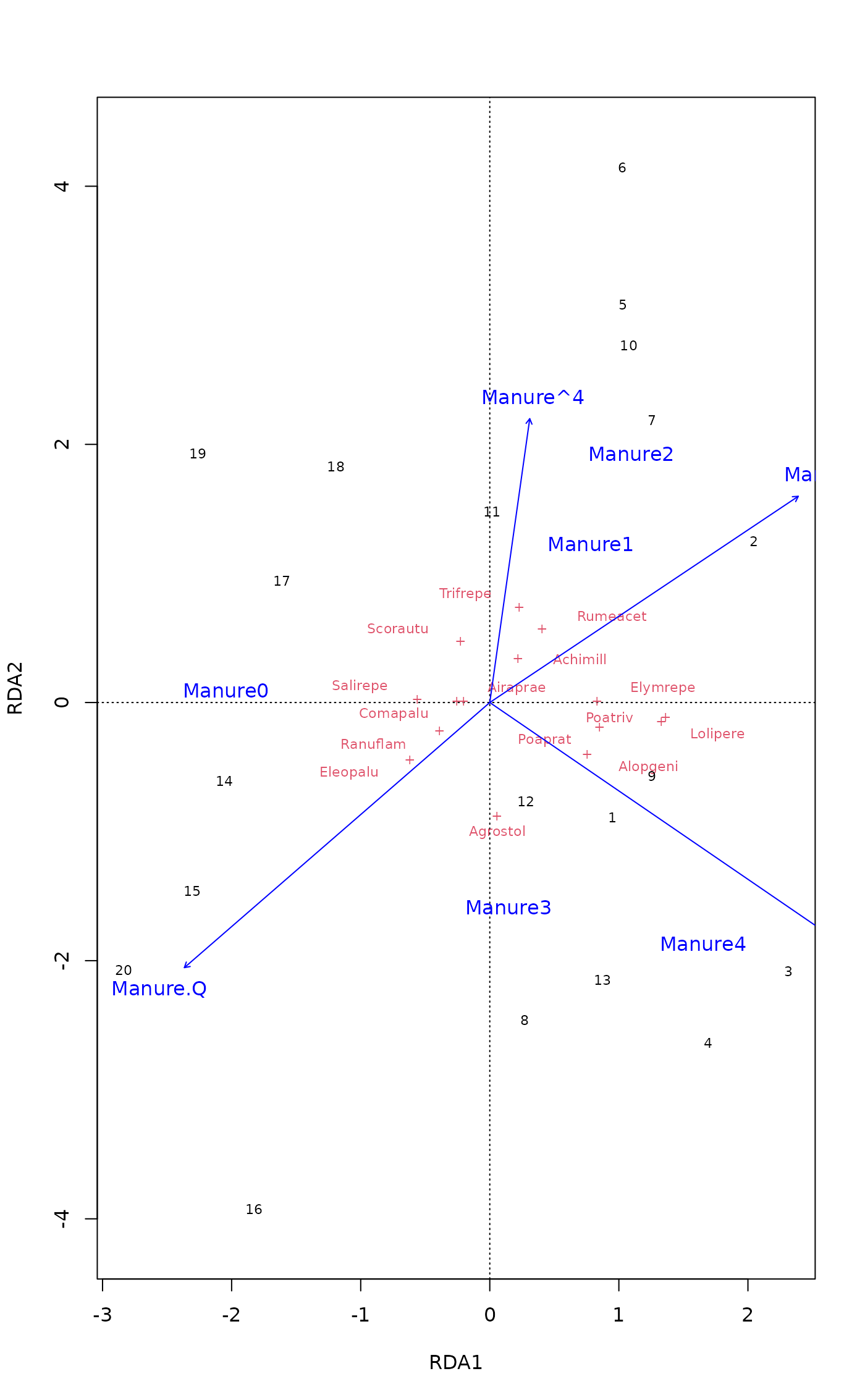

dune.Manure <- rda(dune ~ Manure, dune.env)
plot(dune.Manure)
