Fit and Plot Smooth Surfaces of Variables on Ordination.

Function ordisurf fits a smooth surface for given variable and plots the result on ordination diagram.

Usage

# Default S3 method
ordisurf(x, y, choices = c(1, 2), knots = 10,
         family = "gaussian", col = "red", isotropic = TRUE,
         thinplate = TRUE, bs = "tp", fx = FALSE, add = FALSE,
         display = "sites", w, main, nlevels = 10, levels, npoints = 31,
         labcex = 0.6, bubble = FALSE, cex = 1, select = TRUE, method = "REML",
         gamma = 1, plot = TRUE, lwd.cl = par("lwd"), ...)

# S3 method for class 'formula'
ordisurf(formula, data, ...)

# S3 method for class 'ordisurf'
calibrate(object, newdata, ...)

# S3 method for class 'ordisurf'
plot(x, what = c("contour","persp","gam"),
     add = FALSE, bubble = FALSE, col = "red", cex = 1,
     nlevels = 10, levels, labcex = 0.6, lwd.cl = par("lwd"), ...)

Arguments

x: For ordisurf an ordination configuration, either a matrix or a result known by scores. For plot.ordisurf an object of class "ordisurf" as returned by ordisurf.
y: Variable to be plotted / modelled as a function of the ordination scores.
choices: Ordination axes.
knots: Number of initial knots in gam (one more than degrees of freedom). If knots = 0 or knots = 1 the function will fit a linear trend surface, and if knots = 2 the function will fit a quadratic trend surface instead of a smooth surface. A vector of length 2 is allowed when isotropic = FALSE, with the first and second elements of knots referring to the first and second of ordination dimensions (as indicated by choices) respectively.
family: Error distribution in gam.
col: Colour of contours.
isotropic, thinplate: Fit an isotropic smooth surface (i.e. same smoothness in both ordination dimensions) via gam. Use of thinplate is deprecated and will be removed in a future version of the package.
bs: a two letter character string indicating the smoothing basis to use. (e.g. "tp" for thin plate regression spline, "cr" for cubic regression spline). One of c("tp", "ts", "cr", "cs", "ds", "ps", "ad"). See smooth.terms for an over view of what these refer to. The default is to use thin plate splines: bs = "tp".
fx: indicates whether the smoothers are fixed degree of freedom regression splines (fx = FALSE) or penalised regression splines (fx = TRUE). Can be a vector of length 2 for anisotropic surfaces (isotropic = FALSE). It doesn't make sense to use fx = TRUE and select = TRUE and it is an error to do so. A warning is issued if you specify fx = TRUE and forget to use select = FALSE though fitting continues using select = FALSE.
add: Add contours to an existing diagram or draw a new plot?
display: Type of scores known by scores: typically "sites" for ordinary site scores or "lc" for linear combination scores.
w: Prior weights on the data. Weights of the ordination object will be used if the object has attribute weights or a weights function. Concerns mainly cca and decorana results which have nonconstant weights.
main: The main title for the plot, or as default the name of plotted variable in a new plot.
nlevels, levels: Either a vector of levels for which contours are drawn, or suggested number of contours in nlevels if levels are not supplied.
npoints: numeric; the number of locations at which to evaluate the fitted surface. This represents the number of locations in each dimension.
labcex: Label size in contours. Setting this zero will suppress labels.
bubble: Use a “bubble plot” for points, or vary the point diameter by the value of the plotted variable. If bubble is numeric, its value is used for the maximum symbol size (as in cex), or if bubble = TRUE, the value of cex gives the maximum. The minimum size will always be cex = 0.4. The option only has an effect if add = FALSE.
cex: Character expansion of plotting symbols.
select: Logical; specify gam argument "select". If this is TRUE then gam can add an extra penalty to each term so that it can be penalized to zero. This means that the smoothing parameter estimation that is part of fitting can completely remove terms from the model. If the corresponding smoothing parameter is estimated as zero then the extra penalty has no effect.
method: character; the smoothing parameter estimation method. Options allowed are: "GCV.Cp" uses GCV for models with unknown scale parameter and Mallows' Cp/UBRE/AIC for models with known scale; "GACV.Cp" as for "GCV.Cp" but uses GACV (Generalised Approximate CV) instead of GCV; "REML" and "ML" use restricted maximum likelihood or maximum likelihood estimation for both known and unknown scale; and "P-REML" and "P-ML" use REML or ML estimation but use a Pearson estimate of the scale.
gamma: Multiplier to inflate model degrees of freedom in GCV or UBRE/AIC score by. This effectively places an extra penalty on complex models. An oft-used value is gamma = 1.4.
plot: logical; should any plotting be done by ordisurf? Useful if all you want is the fitted response surface model.
lwd.cl: numeric; the lwd (line width) parameter to use when drawing the contour lines.
formula, data: Alternative definition of the fitted model as x ~ y, where left-hand side is the ordination x and right-hand side the single fitted continuous variable y. The variable y must be in the working environment or in the data frame or environment given by data. All other arguments of are passed to the default method.
object: An ordisurf result object.
newdata: Coordinates in two-dimensional ordination for new points.
what: character; what type of plot to produce. "contour" produces a contour plot of the response surface, see contour for details. "persp" produces a perspective plot of the same, see persp for details. "gam" plots the fitted GAM model, an object that inherits from class "gam" returned by ordisurf, see plot.gam.
...: Other parameters passed to scores, or to the graphical functions. See Note below for exceptions.

Details

Function ordisurf fits a smooth surface using penalised splines (Wood 2003) in gam, and uses predict.gam to find fitted values in a regular grid. The smooth surface can be fitted with an extra penalty that allows the entire smoother to be penalized back to 0 degrees of freedom, effectively removing the term from the model (see Marra & Wood, 2011). The addition of this extra penalty is invoked by setting argument select to TRUE. An alternative is to use a spline basis that includes shrinkage (bs = "ts" or bs = "cs").

ordisurf() exposes a large number of options from gam for specifying the basis functions used for the surface. If you stray from the defaults, do read the Notes section below and relevant documentation in s and smooth.terms.

The function plots the fitted contours with convex hull of data points either over an existing ordination diagram or draws a new plot. If select = TRUE and the smooth is effectively penalised out of the model, no contours will be plotted.

gam determines the degree of smoothness for the fitted response surface during model fitting, unless fx = TRUE. Argument method controls how gam performs this smoothness selection. See gam for details of the available options. Using "REML" or "ML" yields p-values for smooths with the best coverage properties if such things matter to you.

The function uses scores to extract ordination scores, and x can be any result object known by that function.

The user can supply a vector of prior weights w. If the ordination object has weights, these will be used. In practise this means that the row totals are used as weights with cca or decorana results. If you do not like this, but want to give equal weights to all sites, you should set w = NULL. The behaviour is consistent with envfit. For complete accordance with constrained cca, you should set display = "lc".

Function calibrate returns the fitted values of the response variable. The newdata must be coordinates of points for which the fitted values are desired. The function is based on predict.gam and will pass extra arguments to that function.

Value

ordisurf is usually called for its side effect of drawing the contour plot. The function returns a result object of class "ordisurf" that inherits from gam used internally to fit the surface, but adds an item grid that contains the data for the grid surface. The item grid has elements x and y which are vectors of axis coordinates, and element z that is a matrix of fitted values for contour. The values outside the convex hull of observed points are indicated as NA in z. The gam component of the result can be used for further analysis like predicting new values (see predict.gam).

Author

Dave Roberts, Jari Oksanen and Gavin L. Simpson

Note

The default is to use an isotropic smoother via s employing thin plate regression splines (bs = "tp"). These make sense in ordination as they have equal smoothing in all directions and are rotation invariant. However, if different degrees of smoothness along dimensions are required, an anisotropic smooth surface may be more applicable. This can be achieved through the use of isotropic = FALSE, wherein the surface is fitted via a tensor product smoother via te (unless bs = "ad", in which case separate splines for each dimension are fitted using s).

Cubic regression splines and P splines can only be used with isotropic = FALSE.

Adaptive smooths (bs = "ad"), especially in two dimensions, require a large number of observations; without many hundreds of observations, the default complexities for the smoother will exceed the number of observations and fitting will fail.

To get the old behaviour of ordisurf use select = FALSE, method = "GCV.Cp", fx = FALSE, and bs = "tp". The latter two options are the current defaults.

Graphical arguments supplied to plot.ordisurf are passed on to the underlying plotting functions, contour, persp, and plot.gam. The exception to this is that arguments col and cex can not currently be passed to plot.gam because of a bug in the way that function evaluates arguments when arranging the plot.

A work-around is to call plot.gam directly on the result of a call to ordisurf. See the Examples for an illustration of this.

Warning

The fitted GAM is a regression model and has the usual assumptions of such models. Of particular note is the assumption of independence of residuals. If the observations are not independent (e.g. they are repeat measures on a set of objects, or from an experimental design, inter alia) do not trust the p-values from the GAM output.

If you need further control (i.e. to add additional fixed effects to the model, or use more complex smoothers), extract the ordination scores using the scores function and then generate your own gam call.

References

Marra, G.P & Wood, S.N. (2011) Practical variable selection for generalized additive models. Comput. Stat. Data Analysis 55, 2372–2387.

Wood, S.N. (2003) Thin plate regression splines. J. R. Statist. Soc. B 65, 95–114.

Examples

data(varespec)
data(varechem)
vare.dist <- vegdist(varespec)
vare.mds <- monoMDS(vare.dist)
## IGNORE_RDIFF_BEGIN

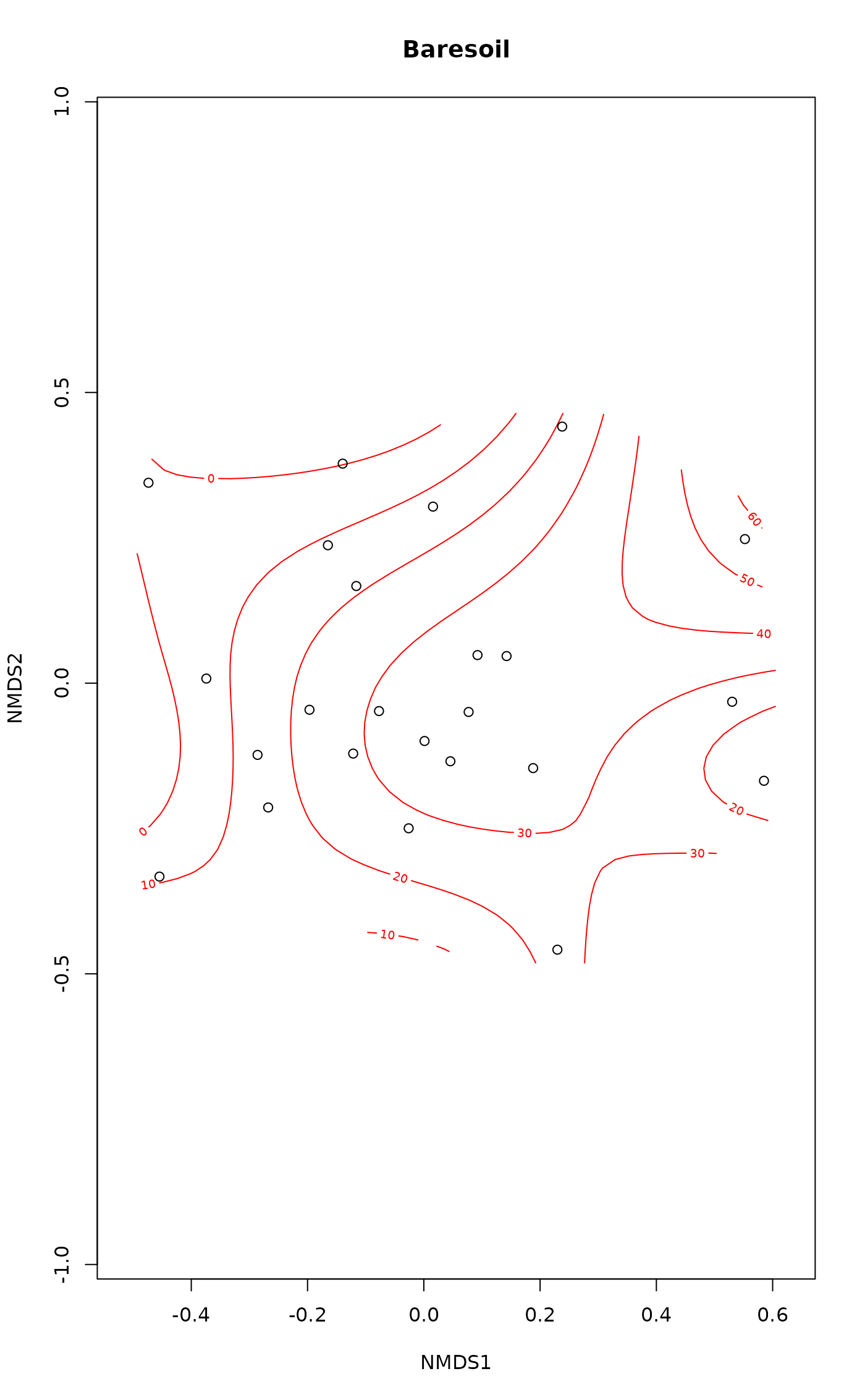

ordisurf(vare.mds ~ Baresoil, varechem, bubble = 5)
#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ s(x1, x2, k = 10, bs = "tp", fx = FALSE)
#>
#> Estimated degrees of freedom:
#> 5.33  total = 6.33
#>
#> REML score: 93.94117

## as above but without the extra penalties on smooth terms,
## and using GCV smoothness selection (old behaviour of `ordisurf()`):
ordisurf(vare.mds ~ Baresoil, varechem, col = "blue", add = TRUE,
                        select = FALSE, method = "GCV.Cp")

#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ s(x1, x2, k = 10, bs = "tp", fx = FALSE)
#>
#> Estimated degrees of freedom:
#> 7.34  total = 8.34
#>
#> GCV score: 154.2905

## Cover of Cladina arbuscula
fit <- ordisurf(vare.mds ~ Cladarbu, varespec, family=quasipoisson)

## Get fitted values
calibrate(fit)
#>         18         15         24         27         23         19         22
#> 21.6245660  8.0344769  3.8614617  2.4595019  6.3958099  5.4260303  6.7158138
#>         16         28         13         14         20         25          7
#> 11.6760252  0.8041517 31.1725536 16.1942370  9.5898311  5.4219628 29.8212626
#>          5          6          3          4          2          9         12
#> 22.8502988 29.9935221  7.1653886 15.5308911  2.8467509  0.9051312  3.5541701
#>         10         11         21
#>  1.3099359 10.7784309  0.9177960
## Variable selection via additional shrinkage penalties
## This allows non-significant smooths to be selected out
## of the model not just to a linear surface. There are 2
## options available:
##  - option 1: `select = TRUE` --- the *default*
ordisurf(vare.mds ~ Baresoil, varechem, method = "REML", select = TRUE)

#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ s(x1, x2, k = 10, bs = "tp", fx = FALSE)
#>
#> Estimated degrees of freedom:
#> 5.33  total = 6.33
#>
#> REML score: 93.94117
##  - option 2: use a basis with shrinkage
ordisurf(vare.mds ~ Baresoil, varechem, method = "REML", bs = "ts")

#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ s(x1, x2, k = 10, bs = "ts", fx = FALSE)
#>
#> Estimated degrees of freedom:
#> 6.26  total = 7.26
#>
#> REML score: 98.83944
## or bs = "cs" with `isotropic = FALSE`
## IGNORE_RDIFF_END
## Plot method
plot(fit, what = "contour")


## Plotting the "gam" object
plot(fit, what = "gam") ## 'col' and 'cex' not passed on

## or via plot.gam directly
library(mgcv)
#> Loading required package: nlme
#> This is mgcv 1.9-1. For overview type 'help("mgcv-package")'.
plot.gam(fit, cex = 2, pch = 1, col = "blue")

## 'col' effects all objects drawn...

### controlling the basis functions used
## Use Duchon splines
ordisurf(vare.mds ~ Baresoil, varechem, bs = "ds")

#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ s(x1, x2, k = 10, bs = "ds", fx = FALSE)
#>
#> Estimated degrees of freedom:
#> 5.33  total = 6.33
#>
#> REML score: 93.94121

## A fixed degrees of freedom smooth, must use 'select = FALSE'
ordisurf(vare.mds ~ Baresoil, varechem, knots = 4,
                        fx = TRUE, select = FALSE)

#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ s(x1, x2, k = 4, bs = "tp", fx = TRUE)
#>
#> Estimated degrees of freedom:
#> 3  total = 4
#>
#> REML score: 85.55121

## An anisotropic smoother with cubic regression spline bases
ordisurf(vare.mds ~ Baresoil, varechem, isotropic = FALSE,
                        bs = "cr", knots = 4)

#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ te(x1, x2, k = c(4, 4), bs = c("cr", "cr"), fx = c(FALSE,
#>     FALSE))
#>
#> Estimated degrees of freedom:
#> 3.08  total = 4.08
#>
#> REML score: 93.02785

## An anisotropic smoother with cubic regression spline with
## shrinkage bases & different degrees of freedom in each dimension
ordisurf(vare.mds ~ Baresoil, varechem, isotropic = FALSE,
                        bs = "cs", knots = c(3,4), fx = TRUE,
                        select = FALSE)

#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> y ~ te(x1, x2, k = c(3, 4), bs = c("cs", "cs"), fx = c(TRUE,
#>     TRUE))
#>
#> Estimated degrees of freedom:
#> 11  total = 12
#>
#> REML score: 42.98348
